Webhook Using

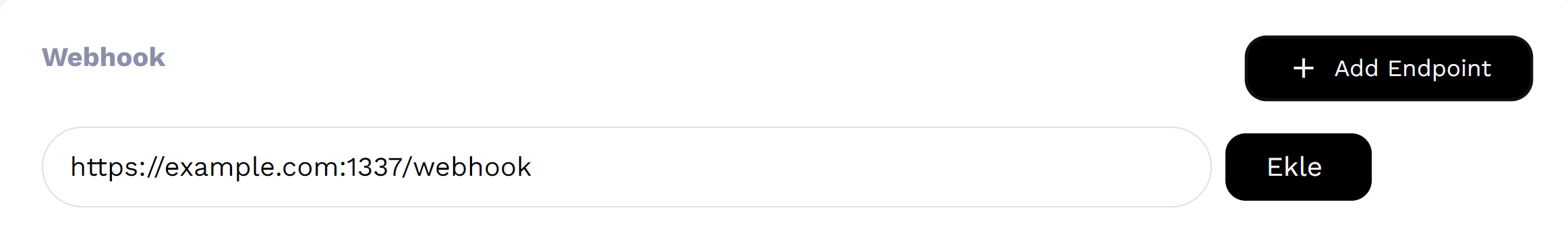

OxsKYT provides Webhook service to notify the result of the pdf generation. On OxsKYT dashboard (opens in a new tab), you add Webhook urls to receive the result of the report generation.

Using Webhook

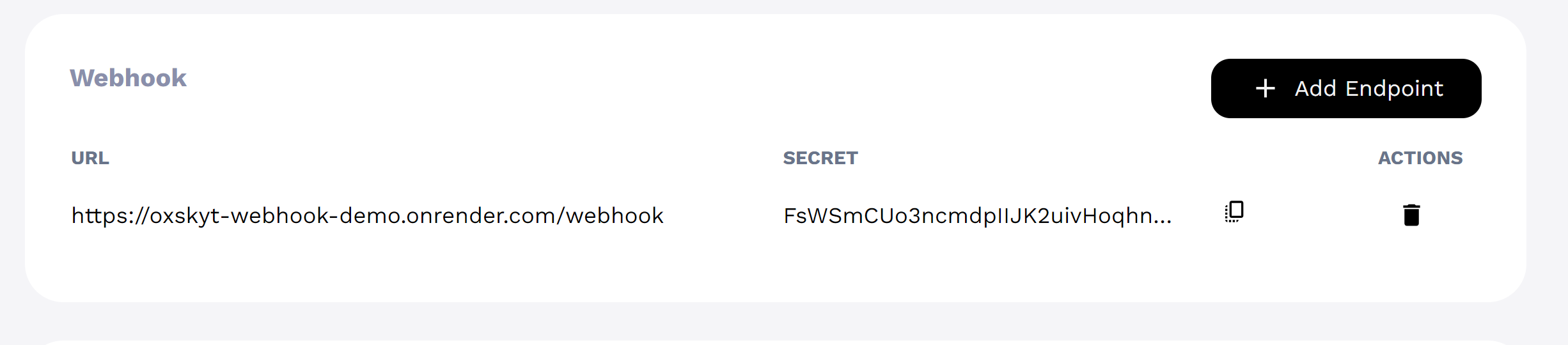

For each report generation, a request is sent to the Webhook address. A field named 'x-signature' is created in the header of the request. The value of this field is created with the 'sha256' algorithm. The body contains the data of the generated report. (To examine the structure of the report data, click here (opens in a new tab) or here.) The purpose of this hash signature is to verify that the request sent to your webhook is sent by OxsKYT. Below is an example code showing how to use the webhook.

Request structure

• header : x-signature : hash value of the body and secret key
• body : report data

Hash function

You can use the following hash function directly in your application. Or you can convert it to the language you are using.

const crypto = require("crypto");
function hashBody(body, secret) {
  return createHash("sha256")
    .update(body)
    .update(createHash("sha256").update(secret, "utf8").digest("hex"))
    .digest("hex");
}

Example Webhook Endpoint on Express.js

We are using the express.js framework for the example because it is easy to understand and use.

app.post("/webhook", (req, res) => {
  const signature = req.headers["x-signature"]; // get signature from header
  const secretKey = process.env.OXSKYT_WEBHOOK_SECRET; // get secret key from environment variable
  if (signature !== hashBody(JSON.stringify(req.body), secretKey)) {  // compare the signature with the hash value of the body and secret key
    res.status(401).send("Invalid signature"); // if the signature is not valid, return 401 and do not process the request
    return;
  } else {
    // The signature is valid, you can process the request. Like, save the report data to the database etc.
    console.log(req.body);
    res.send("OK");
  }
});
